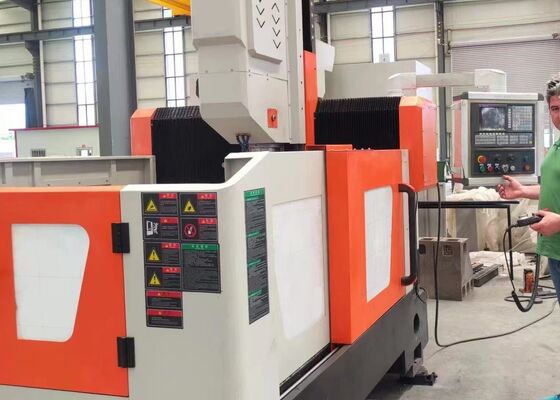

Pressure Vessel Manufacturing CNC Deep Hole Drilling Machine Wind Power Flange Processing
Product Introduction:
The primary operations include drilling holes, reaming, boring, tapping, chamfering, and milling on tube sheet plates and flanges, with hole diameters typically less than φ80mm. This equipment is compatible with both carbide drill bits and standard drill bits. The CNC control system is user-friendly, ensuring ease of operation. The machine delivers exceptional precision, ensuring high work accuracy.
Product configuration:
| Model |
PHD1010 |
| Workpiece size |
LxW (mm) |
1000x1000 |
| T-slot width of Workbench (mm) |
28 |
| Drilling power head |
Qty. |
1 |
| Spindle taper |
BT40 |
| Max. drilling diameter (mm) |
Φ50 |
| Max. thickness (mm) |
≤180 |
| Tapping diameter |
M3-M20 |
| Spindle speed (r/min) |
30~3000 |
| Servo spindle motor power (kW) |
11 |
| Lateral movement of power head (X axis) |
Max. horizontal stroke (mm) |
1000 |
| Lateral movement speed (r/min) |
0~8 |
| Servo motor power for lateral movement (kW) |
2.4 |
| Gantry longitudinal movement (Y axis) |
Max. feed stroke (mm) |
1000 |
| Feed moving speed (m/min) |
0~8 |
| Feed servo motor power (kW) |
2.4 |
| Vertical ram feed motion (Z axis) |
Max. stroke (mm) |
400 |
| Moving speed (m/min) |
0~8 |
| Servo motor power (kW) |
2.4 |
| Three-axis positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.02/1000 |
| Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.01/1000 |
| Electrical system |
CNC system |
SIEMENS/ FAGOR/ KND/ GSK |
| Tool changer |
Disc type (Optional) |
24 tool positions |
| Overall size |
LxWxH (m) |
3.2x2.2x2.2 |
Product Features
1. The machine's frame body and crossbeam are constructed from a welded fabricated structure, followed by comprehensive aging heat treatment to ensure excellent precision. The worktable, transverse sliding table, and ram are all made of cast iron.
2. The dual-servo drive system on both sides of the X-axis ensures precise parallel movement of the gantry, maintaining optimal squareness between the Y and X axes.
3. The worktable is constructed from cast iron, ensuring stable and reliable performance.
4. The drilling spindle is a rigid, high-precision BT40 type, equipped with an internal cooling system and designed for easy tool changes. The spindle speed ranges from 30 to 3000 RPM.
5. On both sides of the worktable, two plate-chain type chip removal systems are installed. These systems efficiently collect scrap and coolant, allowing for the recycling and reuse of the coolant.
6. The machine is equipped with dual cooling systems—internal and external cooling—ensuring adequate pressure and flow rate. Additionally, it features a coolant level monitoring system that guarantees sufficient lubrication and cooling for the drilling tool.
7. The machine incorporates an automatic lubrication system, delivering consistent and reliable lubrication to critical moving components such as the guide rails, ball screws, and roller bearings, thereby ensuring the extended lifespan of these key parts.
8. The CNC control system is the Siemens 828D, offering advanced functionality, automatic CAD-CAM programming, user-friendly operation, as well as automatic alerts and error compensation.
9. Critical outsourced components, including the linear roller guide rails, ball screws, servo motors and drivers, spindle, CNC control system, hydraulic pump, valves, and cooling pump, are sourced from globally renowned brands, ensuring exceptional reliability and stable performance of the machine.

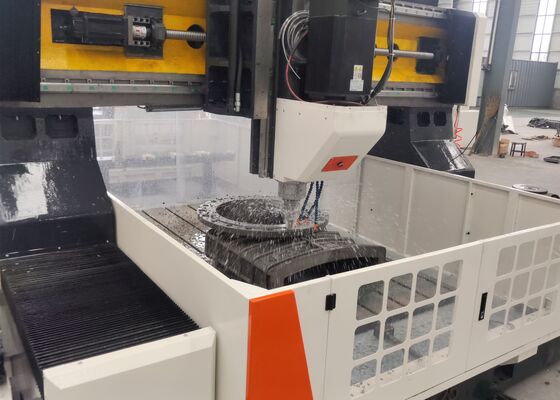

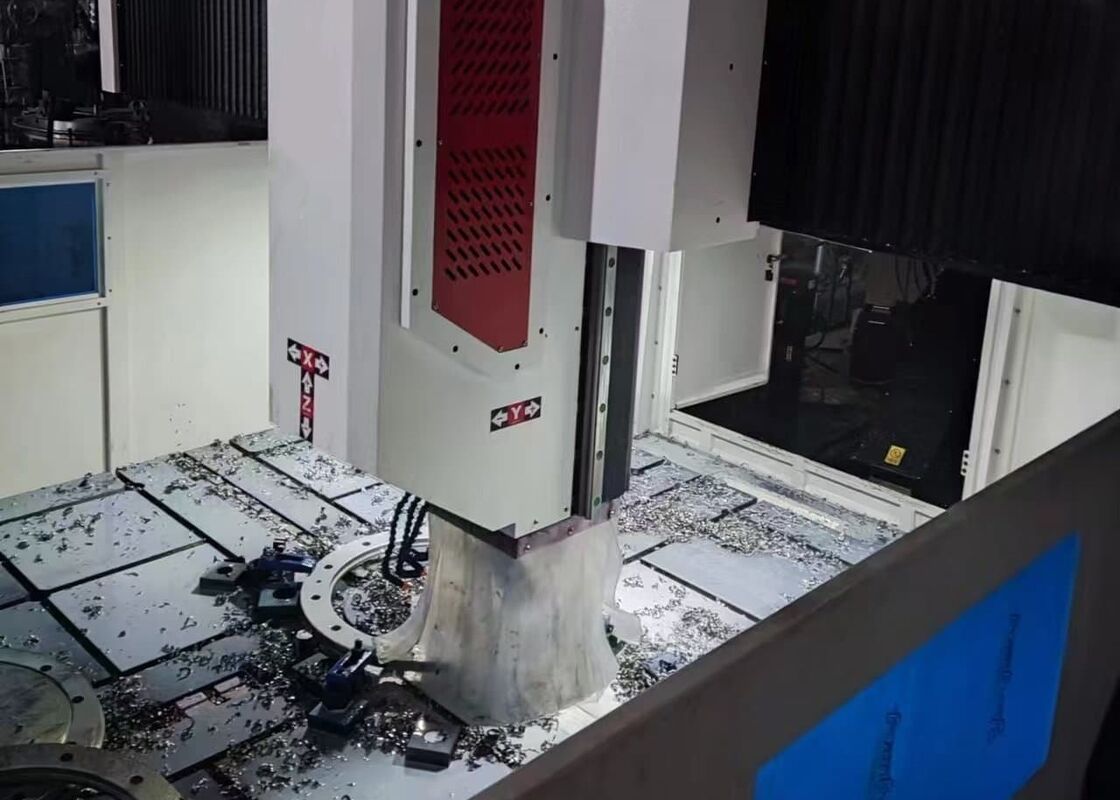

The CNC gantry plate cutting machine is a robust industrial solution, meticulously engineered for the precise processing of plate-shaped components and structural parts. This machine is specifically optimized for handling workpieces such as flanges, discs, rings, and flat plates, provided that the material thickness is within the machine's specified effective machining range.
In steel structure manufacturing plants, this plate drilling machine carries out precise drilling and milling operations on structural plates and connecting components, providing a solid foundation for the robust assembly of steel frameworks. Within the wind energy sector, it delivers high-precision machining for wind turbine towers and flanges—vital processes that ensure these components can withstand extreme environmental conditions, including high winds and temperature fluctuations. For bridge construction projects, the equipment processes bridge girders and supports, ensuring the formation of stable and durable connections that can endure dynamic loads throughout the bridge's extended service life.
