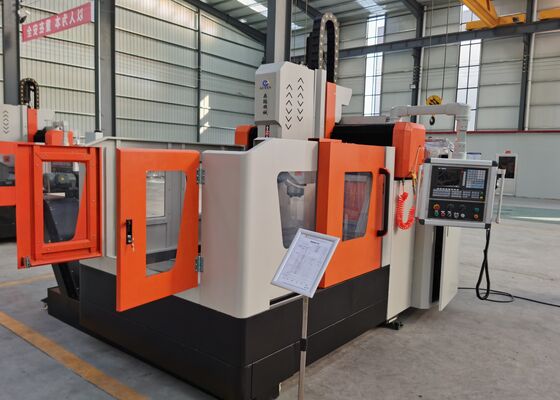

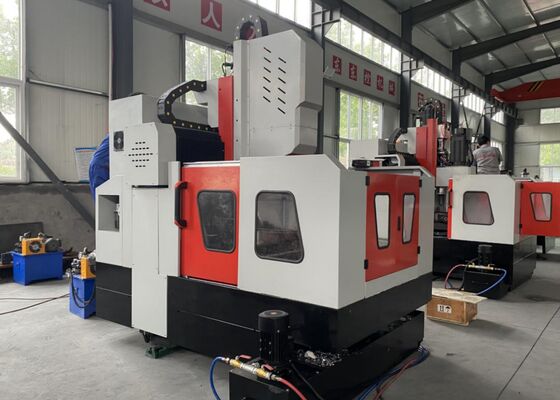

Disc Drilling Machine CNC Structural Plate Flange Drilling Machine Structural Part Machining

Disc Drilling Machine CNC Structural Plate Flange Drilling Machine Structural Part Machining

Product Introduction:

Mainly Drilling tube sheet plates and flanges, the drilling hole diameter is less thanφ80mm. The main function includes drilling holes, reaming, boring, tapping, chamfering, and milling. It's applicable to take both carbide drill bit and drill bit. The CNC control system's operation is convenient and easy. The machine has very high work accuracy.

Product configuration:

Product Features

1. The machine frame body and cross beam are in welded fabricated structure, after enough aging heat treatment, with very good accuracy. The work table, transversal sliding table and ram all are made from cast iron.

2. Two sides'dual servo driving system at X axis assures the gantry's parallel accurate movement, and the good squareness of Y axis and X axis.

3. The work table is made from cast iron, assures stable performance.

4. The Drilling spindle is rigid high precise BT40 type with inner cooling system, and easy to change tools. The spindle speed is 30~3000r/min.

5. At the two sides of the work table there are total two plate-chain type scrap removal device, the scrap and cooling liquid can be collected to the device, and the coolant can be recycling used.

6. The machine has two cooling ways - inner cooling and outside cooling, enough pressure and flow rate, and there is coolant level inspection warning components, which assures enough lubricating and cooling for the drilling tool.

7. The machine has automatic lubricating system, provides enough and reliable lubricating for the key movement points, such as guide rail, ball screw and roller bearings, which assures the key movable components' lifetime.

8. The CNC Control system is Siemens828D , with powerful function, automatic CAD-CAM programming, easy operation, automatic warning and error compensation.

9. The key outsourced components, such as linear roller guide rail, ball screw, servo motor and servo driver, spindle, CNC control system, hydraulic pump, valve and cooling pump, etc., all are from world famous brand, so the machine has very high reliability and stable performance.

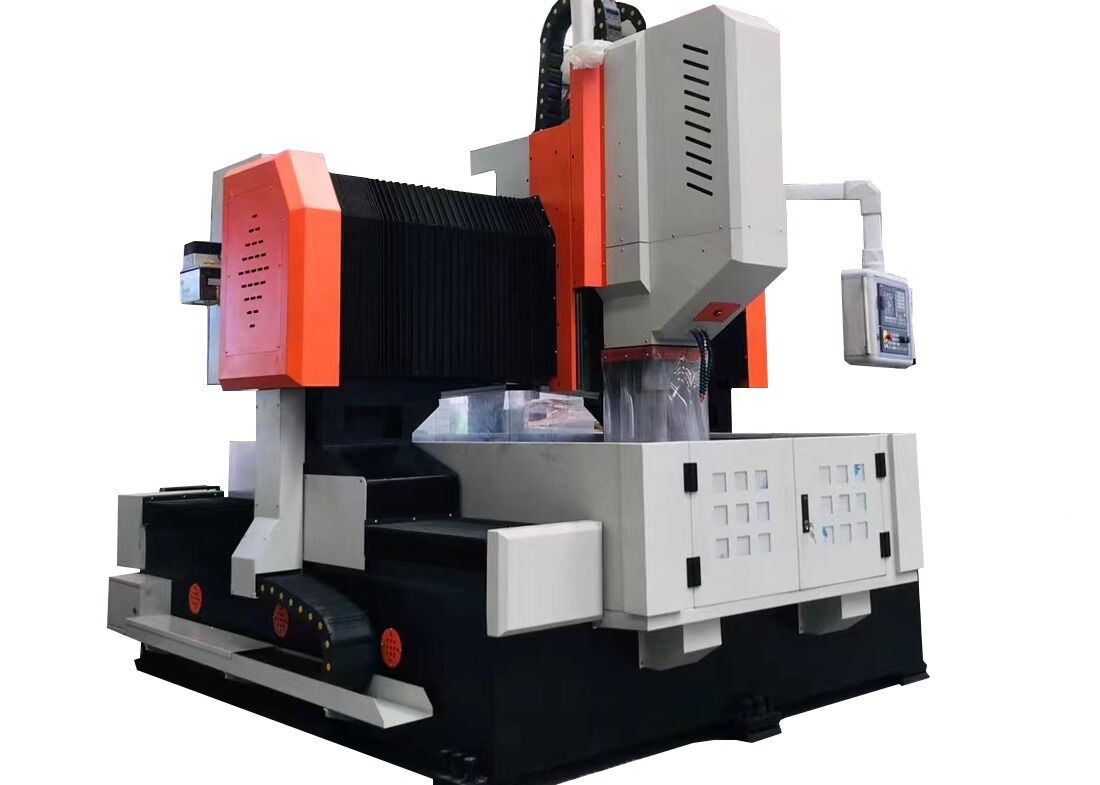

The CNC gantry plate cutting machine is a durable industrial solution, expertly designed for the precise processing of plate-like components and structural elements. This equipment is specifically optimized for handling workpieces such as flanges, discs, rings, and flat plates, with the condition that the material thickness falls within the machine's defined effective machining range.

In steel structure manufacturing facilities, this plate drilling machine performs precise drilling and milling operations on structural plates and connecting components, providing a reliable foundation for the robust assembly of steel frameworks. In the wind energy industry, it offers high-precision machining for wind turbine towers and flanges—critical processes that ensure these components can endure harsh environmental conditions (such as high winds and temperature variations). For bridge construction projects, the equipment processes bridge girders and supports, ensuring the creation of stable and durable connections capable of withstanding dynamic loads over the bridge's extended service life.
