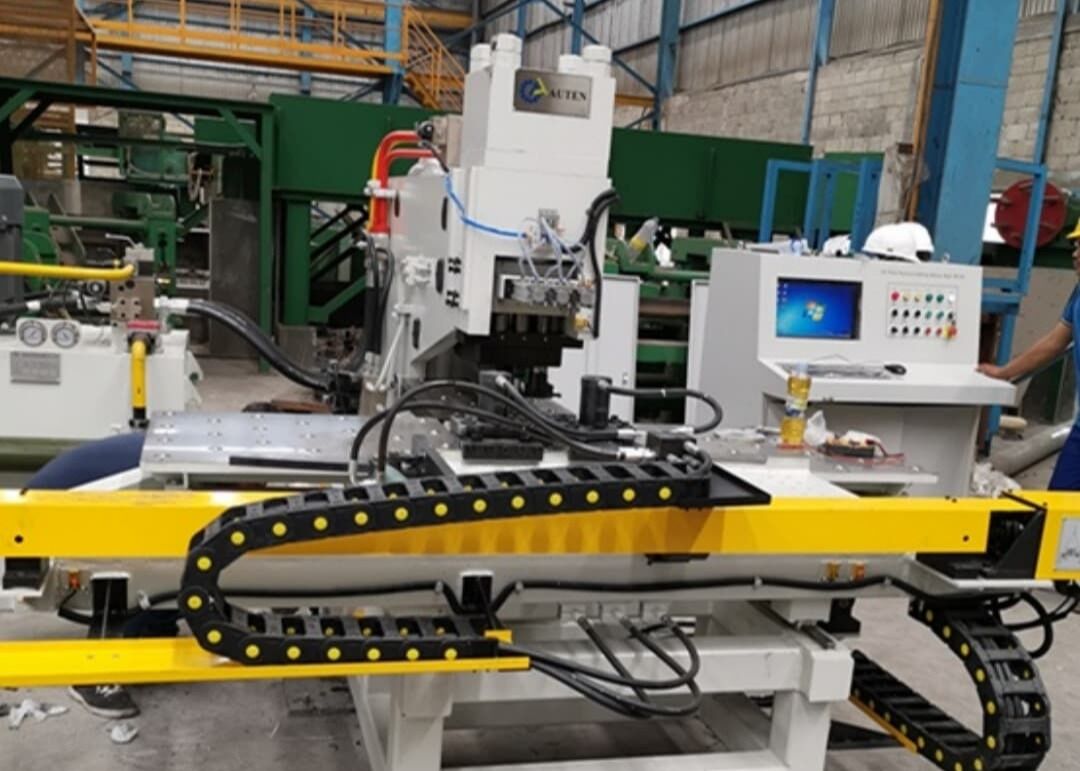

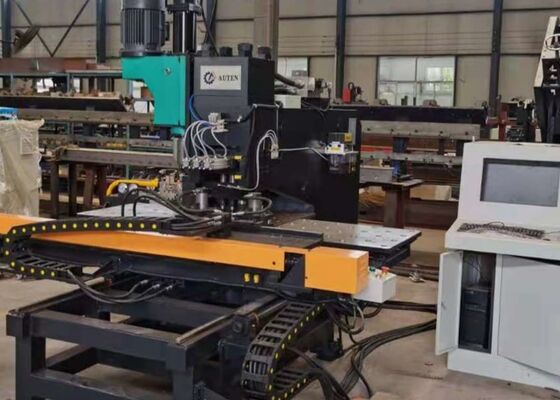

1. The machine is built with a reinforced C-frame welded steel structure that provides exceptional rigidity, vibration resistance, and a large unobstructed working area. It is equipped with three tooling stations—two punching stations and one dedicated marking station—with automatic station indexing to maximize machining efficiency. The hydraulic clamping system securely accommodates steel plates of different sizes and thicknesses, while a precision reference block ensures accurate positioning. A ball-transfer worktable allows smooth material movement during processing. Both the X- and Y-axes are driven by high-performance servo motors and precision ball screws, with PLC-based feedback control enabling fully automated, high-precision punching operations. Machining programs can be created, stored, and recalled for efficient batch production.
2. By integrating advanced CNC control technology with a servo-driven feeding system, the machine achieves high production efficiency while maintaining outstanding machining accuracy, dimensional consistency, and repeatability during continuous operation.
3. Major functional assemblies adopt a modular design, simplifying routine maintenance, facilitating component replacement, and reducing equipment downtime to improve long-term operating efficiency.
4. The equipment is capable of completing punching and marking operations on a single steel plate within one machining cycle, reducing material handling time and significantly increasing processing efficiency and productivity.
5. The CNC control system features an intuitive programming interface that supports direct import of CAD drawings and processing files generated by nesting or lofting software. Full compatibility with TEKLA NC1 files enables seamless data conversion and efficient production programming.
6. An integrated self-diagnostic monitoring system continuously supervises machine operation, automatically detecting abnormalities and displaying fault information for rapid troubleshooting, improved maintenance efficiency, and enhanced equipment reliability.

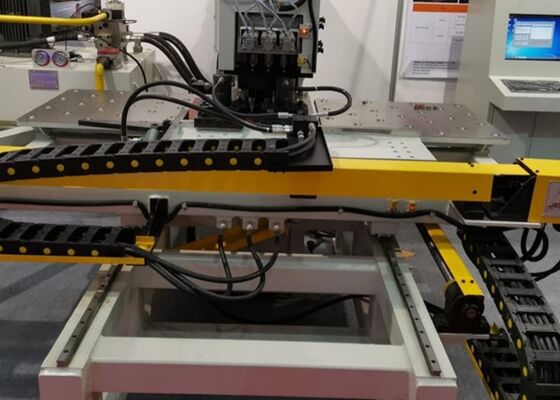

7. The X- and Y-axis drive system utilizes high-performance servo motors, precision ball screws, and high-accuracy linear guideways to deliver superior positioning accuracy, excellent repeatability, and stable machining performance.

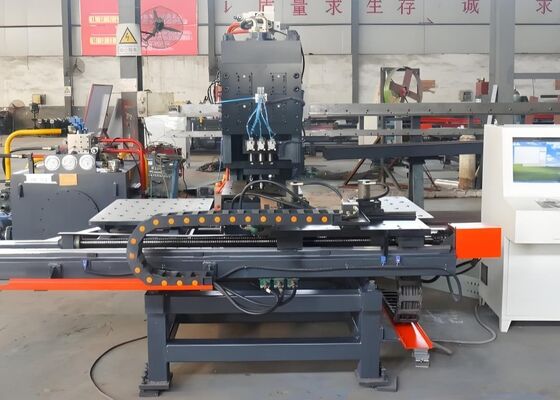

8. The main machine body employs a heavy-duty C-type welded steel frame that provides exceptional structural strength and a spacious processing area suitable for a wide range of steel plate dimensions.
9. Three fully automatic processing stations, including a dedicated marking station, are incorporated into the machine. Automatic station indexing minimizes manual intervention while improving machining efficiency and production flexibility.

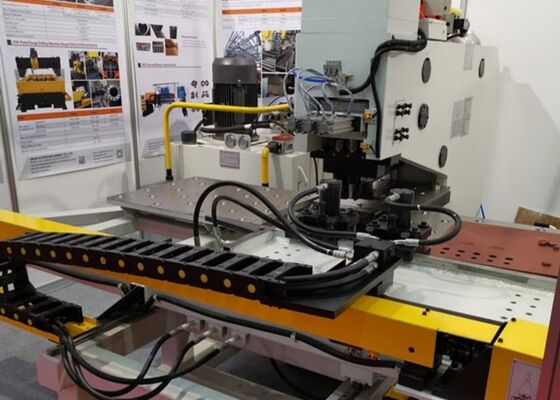

10. The hydraulic clamping mechanism is designed to securely hold steel plates of varying thicknesses. In combination with a precision zero-reference positioning block and a ball-transfer worktable, it ensures stable clamping, accurate positioning, and smooth material handling throughout the machining process.
11. The dual-axis CNC control system coordinates precision servo motors, ball screws, and linear guideways to provide highly accurate X- and Y-axis positioning, ensuring precise punching and marking locations for every workpiece.
12. The entire machining cycle is fully automated. Operators simply import the workpiece drawing into the CNC control system, after which the machine automatically performs the programmed punching, marking, and drilling operations with minimal operator involvement.
